33RT

33rt

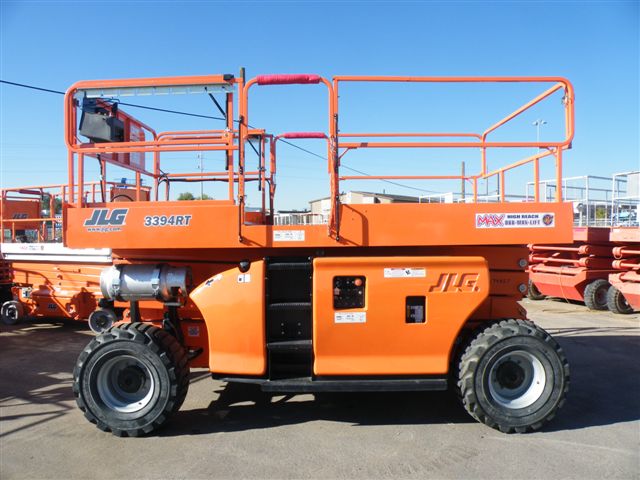

33 Foot Outdoor Duel Fuel Scissor Lifts

  • Maximum capacity of 2,250 lb (1,020 kg)
  • 33 Foot Platform Height
  • 39 Foot Working Height
  • Proportional drive and lift (up and down) controls provide one-handed operation
  • Skid-resistant deck
  • 110V-AC Generator (receptacle in platform)
  • Moveable, removable platform control console
  • Lanyard attach points
  • 4 Wheel Drive Handles 35% Grades
  • Larger Deck Space, Improved Capacity
  • 86 x 150 in. (2.18 x 3.18 m) Platform
  • 4 ft. (1.22 m) Manual Roll-Out Deck Extension
  • Fold-Down Platform Rails
  • Dual Fuel Engine (Gasoline or Propane)
  • 33 x 15.5 - 16.5 Superwide Tires

Specifications

Platform Height - Elevated 33 ft (10.06 m)
Platform Height - Lowered 5 ft 1.75 in. (1.57 m)
Platform Railing Height 3 ft 7.5 in. (1.1 m)
Overall Height (Rails Lowered) 6 ft 5.75 in. (1.97 m)
Platform Size 86 x 150 in. (2.18 x 3.81 m)
Platform Extension 4 ft (1.22 m)
Overall Width 7 ft 10 in. (2.39 m)
Overall Length 12 ft 8 in. (3.86 m)
Wheelbase 9 ft 8 in. (2.95 m)
Ground Clearance 12 in. (30 cm)
Platform Capacity 2,250 lb (1,020 kg)
Platform Extension Capacity 500 lb (227 kg)
Maximum Drive Height 33 ft (10.06 m)
Weight 11,910 lb (5,402 kg)
