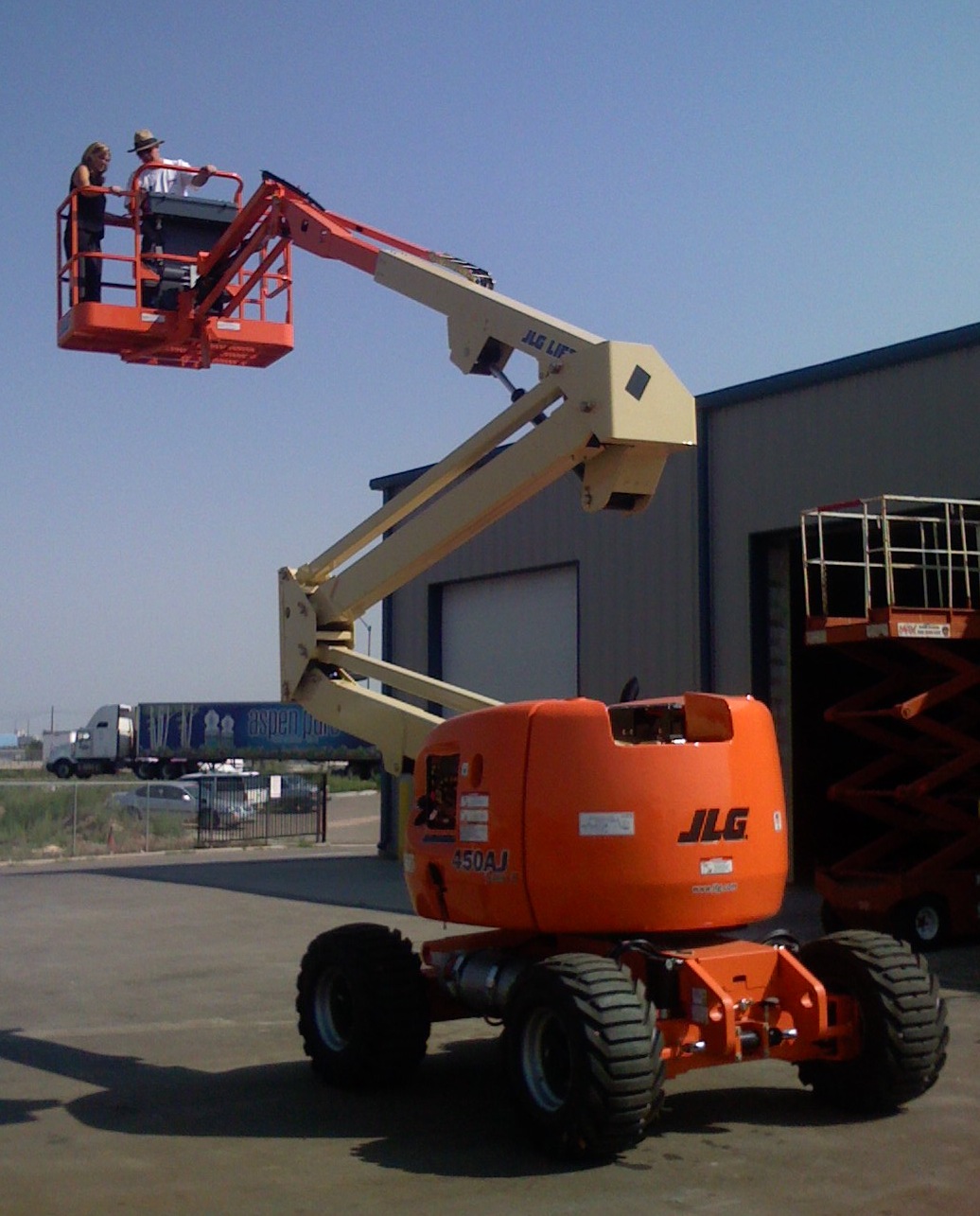

450AJ

45 Foot Outdoor Duel Fuel Boom Lift

  • 45 Foot Platform Height
  • 51 Foot Working Height
  • Articulating jib provides +70 degrees to -65 degrees of motion relative to the main boom
  • Easy to use proportional controls - choose from speed dial or joystick
  • True Multiple Function Operation with the fastest time to full platform height in the class
  • 7500W generator with power cable to platform
  • 4 ft (1.22 m) Articulating Jib
  • 30 x 72 in. (0.76 x 1.83 m) Side Entry Platform
  • Inward Self-Closing Swinging Gate
  • 180 Degree Hydraulic Platform Rotator
  • Skid-resistant deck
  • Lanyard attach points
  • 4 Wheel Drive Handles 35% Grades
  • Dual Fuel Engine (Gasoline or Propane)
45b

Specifications

Platform Height 45 ft (13.72 m)
Horizontal Outreach 24 ft 6 in. (7.47 m)
Up and Over Height 25 ft 2 in. (7.67 m)
Swing 360 Degrees Non-Continuous
Platform Capacity 500 lb (227 kg)
Platform Rotator 180 Degrees Hydraulic
Jib (Range of Articulation) 4 ft 1 in. (1.24 m), 145 Degrees (+78,-67)
Platform Size 30 x 72 in. (0.76 x 1.83 m)
Overall Width 6 ft 10 in. (2.08 m)
Tailswing Zero
Stowed Height 7 ft 5 in. (2.26 m)
Stowed Length 21 ft 5 in. (6.53 m)
Wheelbase 6 ft 6 in. (1.98 m)
Ground Clearance 14 in. (36 cm)
Weight 16,500 lb (7,484 kg)
Max. Ground Bearing Pressure 36 psi (2.5 kg/cm²)
