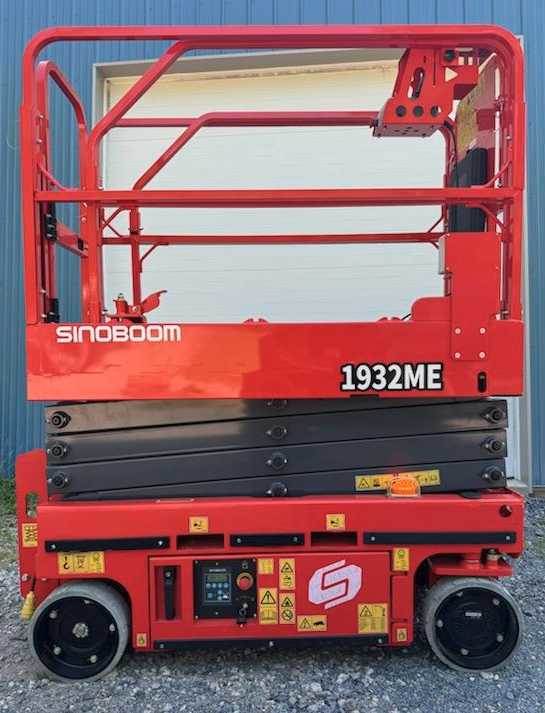

1932ME

19 Foot Indoor Electric Scissor Lifts.

  • 19 Foot Platform Height
  • 25 Foot Working Height
  • Proportional drive and lift (up and down) controls provide one-handed operation
  • Will fit through narrow aisles and a 3 foot doorway
  • Skid-resistant deck
  • 110V-AC receptacle in platform
  • Roll-out deck extension
  • Moveable, removable platform control console
  • Lanyard attach points
  • Note that the 1932ME from Sinoboom has very similar dimensions to the 1930ES from JLG. The Sinoboom has a few extra inches in width and railing height, which complies with most recent OSHA standards. However this makes it more difficult to manuever in tight fitting spaces such as single doorways as well as under doorway overheads.
sinoboom

Specifications

Platform Height Elevated 19 ft 0 in.
Railing Height Folded - 74 in.
Railing Height Unfolded - 84 in.
Platform Size 32 x 71 in. (0.81 x 1.80 m)
Platform Extension 36 in. (91 cm)
Overall Height 7 ft 2 in. (2.13 m)
Overall Width 32 in. (81 cm)
Overall Length 5 ft 5 in. (1.65 m)
Wheelbase 4 ft 4 in. (1.32 m)
Ground Clearance 3 in. (76 mm)
Platform Capacity 500 lb (227 kg)
Capacity on Platform Extension 250 lb (113 kg)
Lift/Lower Time 25/30 sec.
Maximum Drive Height Full Height
Weight 3,473 lb (1,575 kg)
